Belt Conveyors by Pico Automation

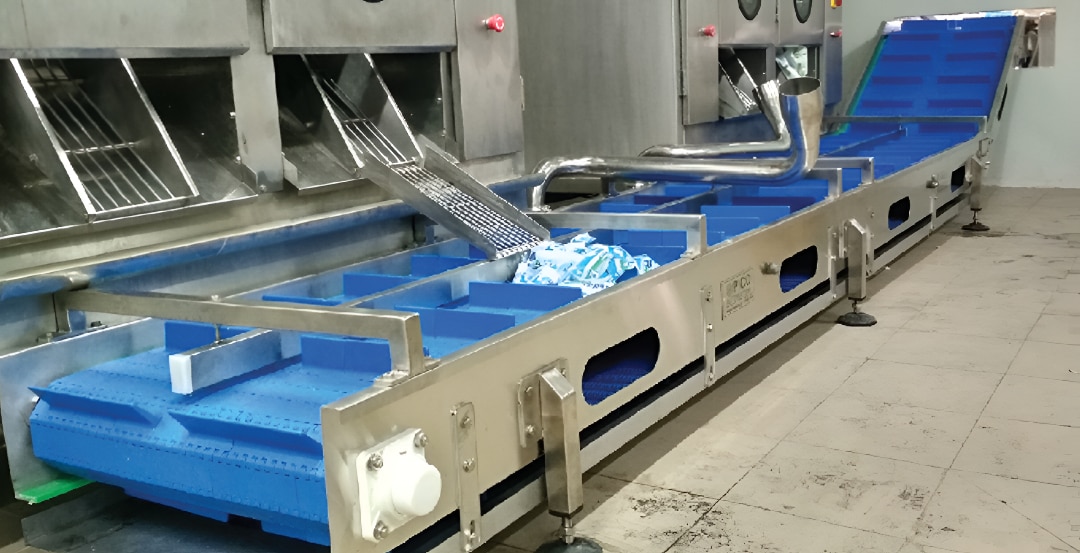

Modular Belt Conveyors

Contact Us

Phone Number

08048068921

Please keep 0 before dialling the number.

Email Address sales@picoautomation.in

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address No:20, Prime Estates, Sf No:34, 1 & 35/1, Athipalayam Rd, Periyanaickenpalayam, Coimbatore, Tamil Nadu 641020

Coimbatore, India, 641020

Description

The belt is driven and supported by a series of plastic or metal sprockets (toothed gears) that lock into the underside of the plastic segments. Because the gears positively engage with the belt, there is zero chance of the belt slipping, tracking off-center, or needing manual tension adjustments. Key Features & Advantages Highly Repairable: If a section of the belt gets damaged, you don't need to replace the entire expensive belt. You simply pop out the hinge pins, replace the few broken plastic modules, and re-insert the pins. This reduces maintenance downtime from hours to minutes. Positive Drive (No Slipping): Because it is driven by sprockets rather than friction rollers, it can handle heavy loads, sudden starts and stops, and high-speed sorting without slipping. Complex Layouts (Side-Flexing): Modular belts can be engineered to go straight, ascend, descend, and bend around tight curves all on a single continuous belt driven by a single motor. This eliminates product transfer points where items might tip over. Material Variety: The plastic modules can be molded from different materials depending on the application: Polypropylene (PP): Great for general use and chemical resistance. Polyethylene (PE): Excellent for low-temperature environments (like food freezers). Acetal: High strength and low friction, perfect for heavy loads or high-wear areas. Common ApplicationsModular belt conveyors are incredibly popular in industries with strict hygiene requirements or complex layout paths:Food Processing & Bakery: Transporting raw dough through proofing rooms, cooling freshly baked bread, or moving meat products through high-pressure washdown zones (the plastic material resists bacteria and is easy to sanitize).Beverage & Canning: Mass-handling rows of aluminum cans or glass bottles around sharp 90-degree turns without them tipping over or scratching.Automotive & Heavy Assembly: Moving heavy car components or logistics totes through manufacturing cells where oils and fluids might degrade a standard rubber belt.E-commerce & Packaging: Sorting, accelerating, and merging cardboard boxes through complex distribution pathways.

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image
Checkweighers

Checkweighers PACW 01G

This is a specially designed High speed Checkweigher to handle Small products in form of Cans, Containers, Cartons, Sachets & etc., Model > (PACW 01G) Weighing Range > (30-200 Grams) Resolution > (0.1 Grams) Product Output > (Up to 120 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232/RS 485 Optional) Product Size > (Dia (L) 30~100 x H (W) 10~200 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)

6814772a5d263414004dd4a4 Card 2

product image
Checkweighers

Checkweighers PACW 2G

This Checkweigher is designed to handle Medium size products in form of Mono Cartons, Pouches, Yarn cheese, Coir tablets & etc., Model > (PACW 2G) Weighing Range >(0.5-1.99 Kgs) Resolution > (2 Gram) Product Output > (60 to 80 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232 / RS 485 Optional) Product Size > (L 100~250 x W 100~250 x H 50~200 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)

6814772a5d263414004dd4a4 Card 2

product image
Checkweighers

Checkweighers PACW 10G

This Checkweigher is designed to handle Large size products in form of Small Cartons, Bags, Containers & etc., Model > (PACW 10G) Weighing Range > (1-10 Kgs) Resolution > (10 Grams) Product Output > (Up to 40 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232 / RS 485 Optional) Product Size > (L 100~300 x W 100~280 x H 50~250 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)
