checkweighers

This is a specially designed High speed Checkweigher to handle Small products in form of Cans, Containers, Cartons, Sachets & etc., Model > (PACW 01G) Weighing Range > (30-200 Grams) Resolution > (0.1 Grams) Product Output > (Up to 120 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232/RS 485 Optional) Product Size > (Dia (L) 30~100 x H (W) 10~200 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)

This Checkweigher is designed to handle Medium size products in form of Mono Cartons, Pouches, Yarn cheese, Coir tablets & etc., Model > (PACW 2G) Weighing Range >(0.5-1.99 Kgs) Resolution > (2 Gram) Product Output > (60 to 80 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232 / RS 485 Optional) Product Size > (L 100~250 x W 100~250 x H 50~200 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)

This Checkweigher is designed to handle Large size products in form of Small Cartons, Bags, Containers & etc., Model > (PACW 10G) Weighing Range > (1-10 Kgs) Resolution > (10 Grams) Product Output > (Up to 40 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232 / RS 485 Optional) Product Size > (L 100~300 x W 100~280 x H 50~250 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)

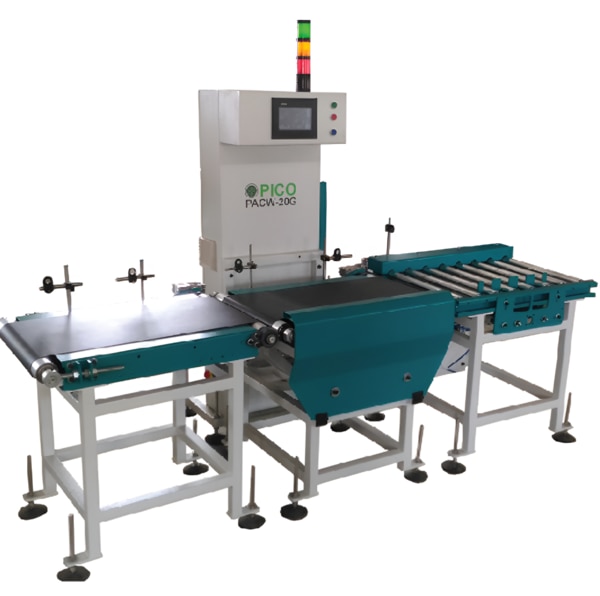

This Checkweigher is designed to handle Large size products in form of Master Cartons, Bags, Crates & etc., Model > (PACW 15/20G) Weighing Range > (1-15 Kgs) Resolution > (15/20 Grams) Product Output > (Up to 20 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232 / RS 485 Optional) Product Size > (L 100~400 x W 100~350 x H 50~300 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)

This Checkweigher is specially designed to handle Extra Large size products in form of Master Cartons, Bags, Crates, Barrels & etc. Model > (PACW 50G) Weighing Range > (20-50 Kgs) Resolution > (50 Grams) Product Output > (Up to 25 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232/RS 485 Optional) Product Size > (L 400~700 x W 300~600 x H 100~300 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)

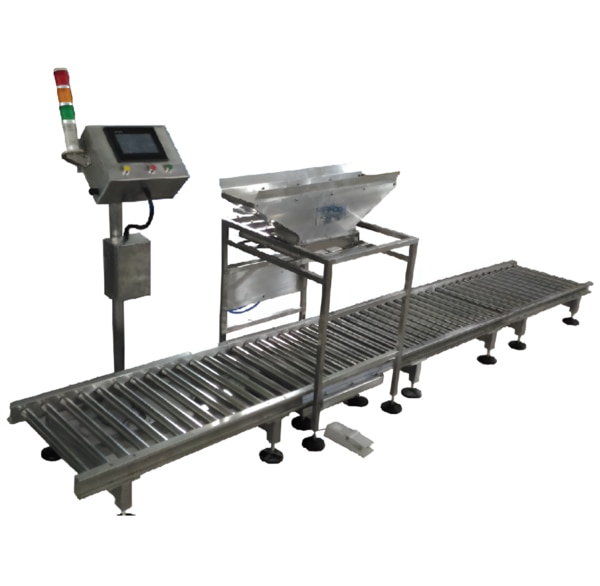

This is a customized Static Weigher with pneumatic controlled Hopper unit with auto weighing and filling options. The system is commonly suitable in seafood/fruit/vegetables processing units & etc. Model > (PASW 10G) Weighing Range > (Up to 50 Kgs) Resolution > (15 Gram) Product Output > (Based on filling weight) Controller > (Micro Controller Based) Operation Panel > (7' HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232 / RS 485 Optional) Product Size > (No Limits) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)
