A crate chain conveyor quotation can range from a small transfer section costing tens of thousands of rupees to a fully integrated, installed line costing several lakhs. The right comparison depends on crate geometry, load, speed, accumulation, hygiene, controls and installation scope—not just the quoted price per metre.
Key takeaways
- Use tens of thousands to several lakhs as an initial budget band.
- Request chain type, conveyor length, controls, GST, freight and installation separately.
- Test your actual crates for stability, spacing, transfers and jam recovery.
- Compare suppliers by drawings, acceptance tests, service response and spare-parts support.
What does a crate chain conveyor cost in Coimbatore?
A realistic crate chain conveyor price in Coimbatore starts in the tens of thousands for a short, basic section and reaches several lakhs for a complete automated line. Treat these as budgeting bands, not supplier quotations; GST, freight and site conditions can change the total.
| Project type | Budgetary range | What the allowance covers |
|---|---|---|
| Short non-powered transfer | ₹30,000–₹80,000 | Frame, chain bed and manual movement |
| Standard powered conveyor | ₹80,000–₹2.5 lakh | Motor, gearbox, frame, chain and basic guides |
| Inclined chain conveyor for crates | ₹1.25–₹3.5 lakh | Incline frame, higher drive capacity and retaining guides |
| Powered transfer section | ₹60,000–₹2 lakh | Transfer mechanism, sensors and controls |
| Custom line with accumulation | ₹3–₹7 lakh | Multiple zones, sensors, PLC logic and adjustable guides |
| Complete installed system | ₹5–₹12 lakh or more | Stainless construction, guarding, transfers, commissioning and training |
A chain conveyor for crates costs more when it handles heavy loads, wet or oily crates, high speeds, zero-pressure accumulation, RFID or checkweighing. Ask for separate prices for equipment, controls, installation, commissioning, freight, GST and spares; a low per-metre rate can hide expensive transfers and site work.
Which quotation details change the final price?
There is no single crate chain conveyor price in coimbatore: the quotation changes with the duty, construction and site work specified. A short transport conveyor costs far less than a line that buffers wet, heavy crates and communicates with packing or weighing equipment.
| Item | What raises the quotation | What to specify |
|---|---|---|
| Dimensions | Longer, wider conveyors need more frame, chain, supports and drive power | Overall length, usable width, height and incline |
| Load | Heavy crates increase chain count, sprocket size, motor rating and gearbox service factor | Maximum crate mass, spacing, centre of gravity and hourly throughput |
| Materials | Stainless steel frames, stainless sprockets and corrosion-resistant wear strips cost more than painted mild steel | Wet, dusty or oily conditions and required contact materials |
| Controls | Sensors, VFDs, PLC logic, guarding and zero-pressure accumulation add hardware and engineering | Fixed-speed transport, accumulation zones, emergency stops and machine interfaces |
| Installation | Site assembly, alignment, commissioning, freight, GST and travel can sit outside the equipment price | Confirm each charge and the warranty or response arrangement |
For a crate handling conveyor, request chain make and pitch, guide adjustment range, enclosure rating, spare parts and drawings as line items. A low per-metre rate can hide excluded transfers, controls or commissioning. Compare the complete delivered and operating system, not just the frame.
How should you compare Coimbatore crate conveyor suppliers?
Send every crate chain conveyor supplier the same crate drawing or physical sample, layout and operating brief. Include loaded mass, centre of gravity, bottom-rib pattern, crate material, permitted orientation, contact surfaces, speed, daily hours, and whether crates arrive wet, dusty or oily. State conveyor length, width, elevations, transfers, accumulation zones and required throughput.
Request a line-item quotation covering:
- Chain make, pitch and quantity; sprocket material; wear-strip material
- Frame material, guide-rail adjustment range and guarding
- Motor rating, gearbox model and service factor
- Sensors, PLC, HMI, safety relay and electrical enclosure rating
- Emergency-stop arrangement, controls integration and spare parts
- Freight, GST, installation, commissioning, warranty and exclusions
| Quote item | Require this detail | Why comparison fails without it |
|---|---|---|
| Drive | Motor size, gearbox and service factor | An undersized drive can stall under accumulated load |
| Construction | Stainless or painted frame, chain and wear strips | Material changes hygiene, corrosion resistance and cost |
| Controls | Sensor and PLC brands, safety circuits and interfaces | “Controls included” does not define responsibility |
| Service | Installation, testing, training and response terms | A low equipment price can hide commissioning costs |
Ask each Crate Conveyor Manufacturer in Coimbatore to identify whether it is supplying fabrication only, an integrated control system or the complete line, and who owns PLC, RFID, weighing and upstream-interface responsibility.
Can your crates run reliably on the proposed conveyor?
Reliable running starts with a drawing and sample crates, not a per-metre conveyor rate. Give the supplier external length, width and height, dimensional tolerances, base footprint, open runners or feet, and the heaviest and lightest loaded weights.
1. State the crate bottom geometry and contact area. A flat, continuous base suits a slat chain; narrow feet or ribs may need parallel chains and support rails.
2. Specify the chain construction: plastic or stainless-steel flat-top slat chain, or roller chain; chain width, pitch, surface finish, washdown chemicals and required load capacity. The wrong surface slips, scuffs or stalls crates.
3. Define adjustable side guides, guide height and clearance. Fixed guides that fit one crate can jam another after tolerances or load distortion.
4. State the required crate spacing, line speed and start-stop frequency. Add the number, angle and height of every transfer; uneven gaps can rotate crates or upset a checkweigher.
5. Describe accumulation separately from transport. Request zero-pressure or low-pressure zones, zone sensors and controlled back pressure when crates must queue without touching.
6. Put acceptance conditions in the order: run both weight extremes, the full speed range, repeated starts, every transfer and maximum accumulation. Record jams, orientation, sensor misses, chain tracking, noise, motor temperature, RFID reads and checkweigher stability.
A crate handling conveyor that passes this trial is a safer specification than one that merely carries an empty crate.
Which Coimbatore suppliers can build and support the line?
Contact three supplier types, not three per-metre prices. A crate conveyor manufacturer in Coimbatore may be a mechanical fabricator, an automation integrator, or an equipment OEM. Ask each to name the person responsible for installation, PLC logic, safety circuits, commissioning and after-sales service.
| Supplier model | What it should provide | Confirm before ordering |
|---|---|---|
| Mechanical fabricator | Frame, chains, drives, guides, transfers and guarding | Who installs it, wires sensors and corrects mechanical alignment |
| Automation integrator | Conveyor, PLC, HMI, sensors, safety circuits and machine interfaces | Who owns weighing, RFID, upstream and downstream signals |
| Process OEM | A complete line linked to packing, grading, checkweighing or palletising | Which equipment is included, and who supports the whole line |

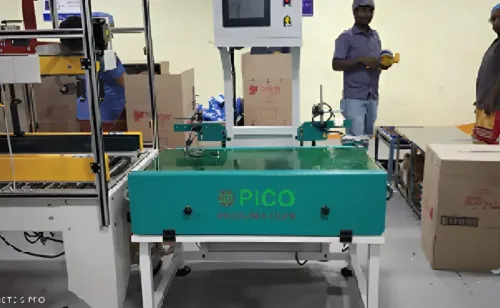

Pico Automation is one Coimbatore supplier to assess when the conveyor must connect with checkweighing, RFID or other material-handling equipment. Compare its proposed interface list with every other crate chain conveyor supplier.
Require a named commissioning engineer, electrical drawings, PLC backups, alarm lists, spare-parts recommendations and a written response time. Confirm whether installation, freight, GST, operator training and repeat site visits are included; a low equipment price becomes expensive when controls documentation or local support is missing.
Related product

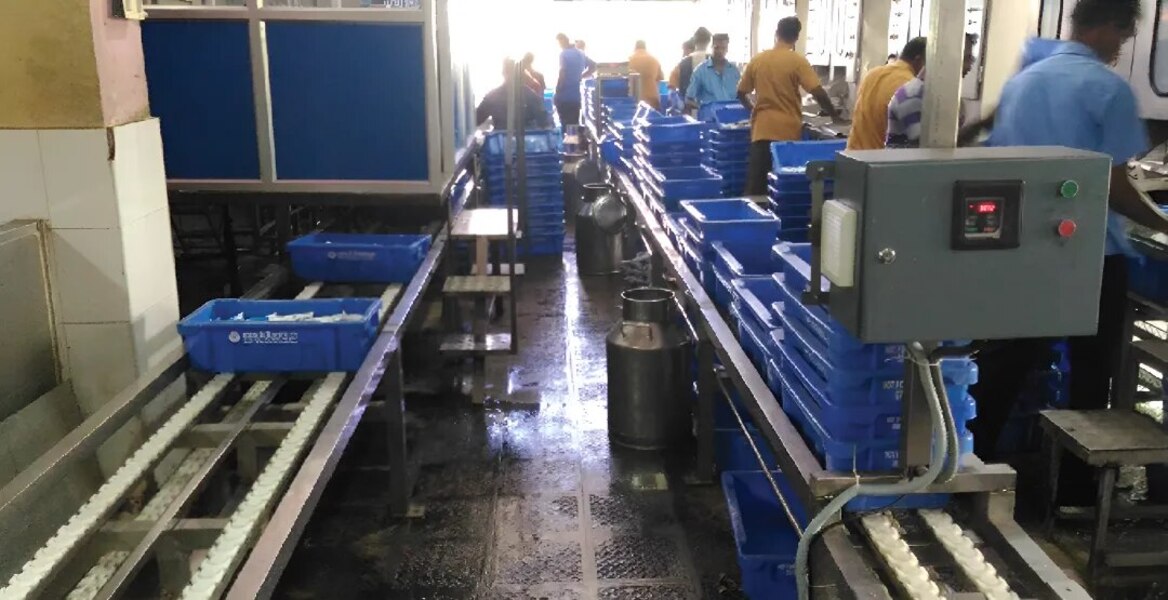

 | Chain Conveyors Instead of a continuous solid belt, a crate chain conveyor features two or more parallel strands of chain running inside dedicated tracks. View product → |
What acceptance tests prevent jams and hidden operating costs?
Do not accept a crate handling conveyor after a dry run with one crate. Run a witnessed trial using the heaviest and lightest crates, the full required speed range, start-stop cycles, accumulation and every transfer, with pass limits agreed in writing.
1. Load crates in normal and worst-case orientations. Check side guides, chain tracking, skew, tipping and transfer gaps; record every jam, fallen crate and orientation change.
2. Fill each accumulation zone, then release crates in batches. Confirm zero-pressure or low-pressure behaviour: no damaging back pressure, touching crates, sensor “full” misses or uncontrolled restarts.
3. Test photoelectric sensors, interlocks and emergency stops with clean, dirty and partly obscured targets. Count missed detections and verify that a sensor fault stops the correct section.
4. Run RFID-tagged crates through every read point at line speed and during spacing changes. Record missed reads, duplicate reads and wrong crate identities.
5. Feed the checkweigher with controlled spacing, a level transition and settling time. Compare repeated readings at minimum and maximum speed, including adjacent-crate runs.
Record jam frequency, noise, motor temperature, chain wear and recovery time. Put signed results, PLC backups, drawings, spare-parts lists and remedies for failed tests into the acceptance certificate with the crate chain conveyor supplier.
Frequently asked questions
What does a crate chain conveyor cost in Coimbatore?
A short, basic section can cost tens of thousands, while a complete automated line can reach several lakhs. GST, freight, installation, controls and site conditions change the quotation.
Which quotation details change the final price?
Check conveyor length and width, chain material, frame construction, motor and gearbox, speed control, sensors, guarding, transfers, controls, installation, freight and GST.
How should you compare Coimbatore crate conveyor suppliers?
Compare itemised quotations, layout drawings, delivery scope, warranty terms, service response, spare-parts availability and the supplier’s acceptance-test procedure.
Can my crates run reliably on the proposed conveyor?
Test the actual crate sizes, bases, weights and loads for tracking, stability, spacing, transfers, accumulation and jam recovery before approving the design.
What acceptance tests prevent jams and hidden operating costs?
Run loaded and empty crates through starts, stops, speed changes, accumulation, transfers and emergency stops. Record throughput, misalignment, noise, motor load and recovery time.
