Checkweighers Optional Features by Pico Automation

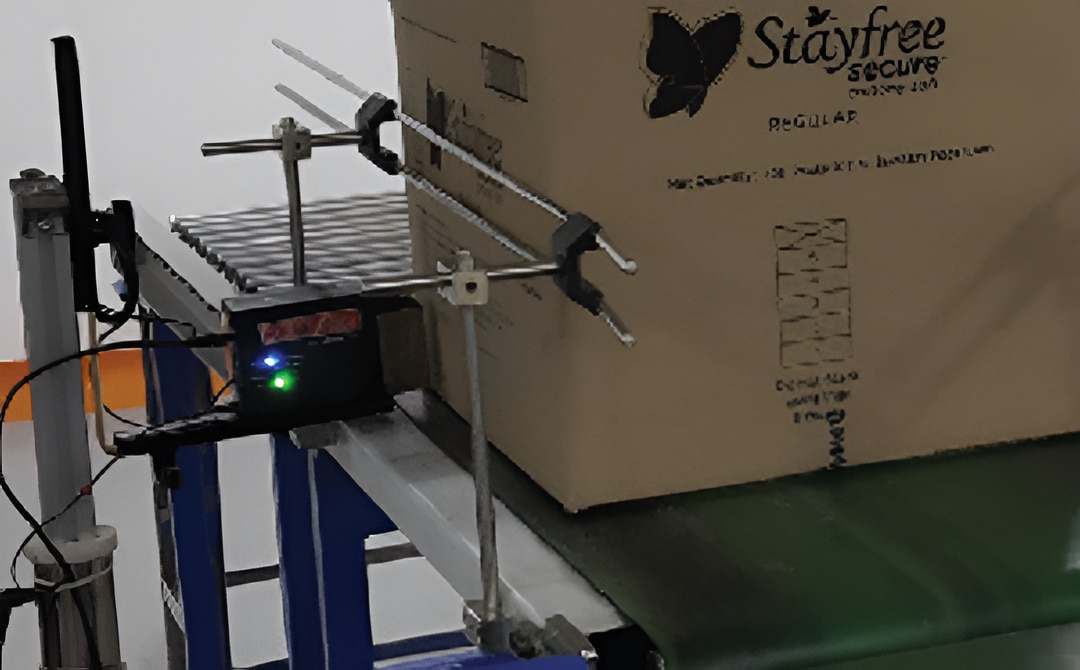

In-jet Printer Integration

Contact Us

Phone Number

08048068921

Please keep 0 before dialling the number.

Email Address sales@picoautomation.in

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address No:20, Prime Estates, Sf No:34, 1 & 35/1, Athipalayam Rd, Periyanaickenpalayam, Coimbatore, Tamil Nadu 641020

Coimbatore, India, 641020

Description

For an inline printer integration to work successfully, three distinct systems must communicate seamlessly in real time: The Product Detector (The “Eye”): As a product (like a bottle, carton, or pouch) moves down the conveyor, it passes a photoelectric sensor. This sensor instantly registers the leading edge of the product and sends a signal to the printer's controller. The Speed Sync (The Encoder): If a conveyor speeds up or slows down even slightly, text sprayed at a fixed rate will either stretch out or bunch up. To prevent this, a rotary shaft encoder is mounted to the conveyor drive. The encoder reads the exact mechanical speed of the belt and tells the printhead precisely how fast to fire its microscopic ink droplets. The Print Execution: Combining the positional data from the sensor and the speed data from the encoder, the printhead fires the ink droplets across a precise millimeter-distance air gap onto the moving product. Key Technical Advantages No Production Bottlenecks: Products do not need to pause to be labeled or stamped. The integration prints crisp data at speeds often exceeding hundreds of units per minute. Microsecond Accuracy: The hardware handshake between the sensor and the printer ensures that the text lands in the exact same spot on every single item, maintaining a clean, professional retail look. Centralized Data (PLC Connectivity): Modern integrations connect directly to a central industrial computer (PLC). When a manager changes the product recipe or batch code on the main touchscreen, the printer automatically updates its text layout without someone needing to re-program the printer individually. Common Applications Inkjet integrations are critical in fast-moving consumer goods (FMCG) sectors where traceback tracking is legally mandated: Pharmaceuticals: Printing anti-counterfeit serial numbers, QR codes, and expiry details directly onto medicine cartons. Food & Beverage: Spraying “Best Before” dates onto milk cartons, plastic pouches, or snack bags immediately after they are filled. Chemicals & Cosmetics: Marking batch tracking codes onto the bottoms or shoulders of shampoo bottles, cleaning jugs, and personal care packaging.

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image
Checkweighers

Checkweighers PACW 01G

This is a specially designed High speed Checkweigher to handle Small products in form of Cans, Containers, Cartons, Sachets & etc., Model > (PACW 01G) Weighing Range > (30-200 Grams) Resolution > (0.1 Grams) Product Output > (Up to 120 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232/RS 485 Optional) Product Size > (Dia (L) 30~100 x H (W) 10~200 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)

6814772a5d263414004dd4a4 Card 2

product image
Checkweighers

Checkweighers PACW 2G

This Checkweigher is designed to handle Medium size products in form of Mono Cartons, Pouches, Yarn cheese, Coir tablets & etc., Model > (PACW 2G) Weighing Range >(0.5-1.99 Kgs) Resolution > (2 Gram) Product Output > (60 to 80 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232 / RS 485 Optional) Product Size > (L 100~250 x W 100~250 x H 50~200 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)

6814772a5d263414004dd4a4 Card 2

product image
Checkweighers

Checkweighers PACW 10G

This Checkweigher is designed to handle Large size products in form of Small Cartons, Bags, Containers & etc., Model > (PACW 10G) Weighing Range > (1-10 Kgs) Resolution > (10 Grams) Product Output > (Up to 40 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232 / RS 485 Optional) Product Size > (L 100~300 x W 100~280 x H 50~250 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)
