Checkweighers Optional Features by Pico Automation

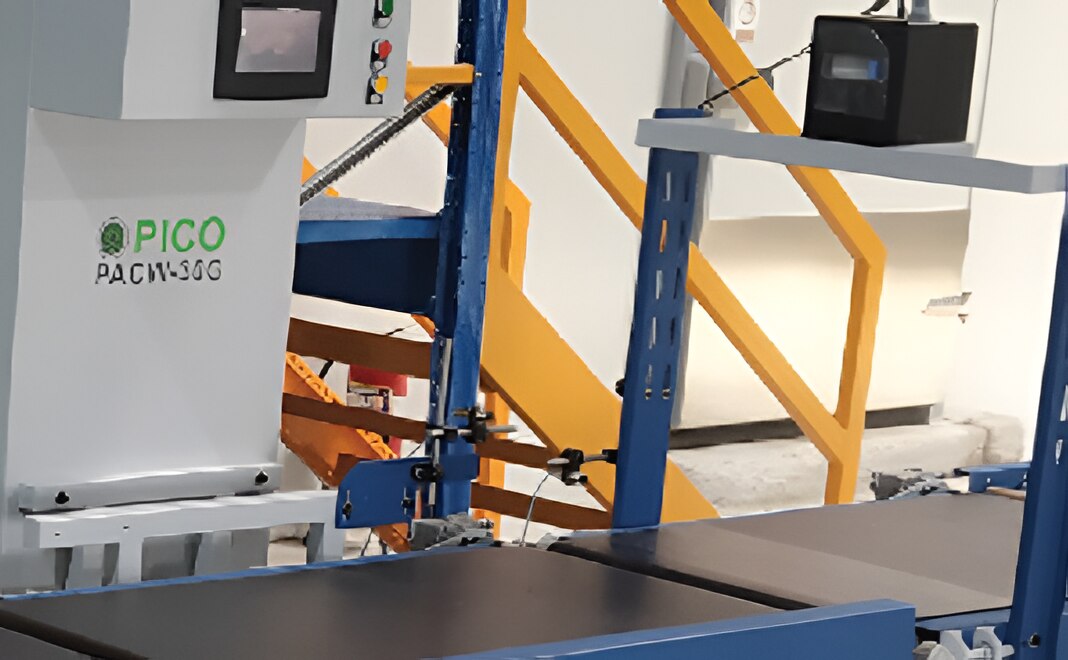

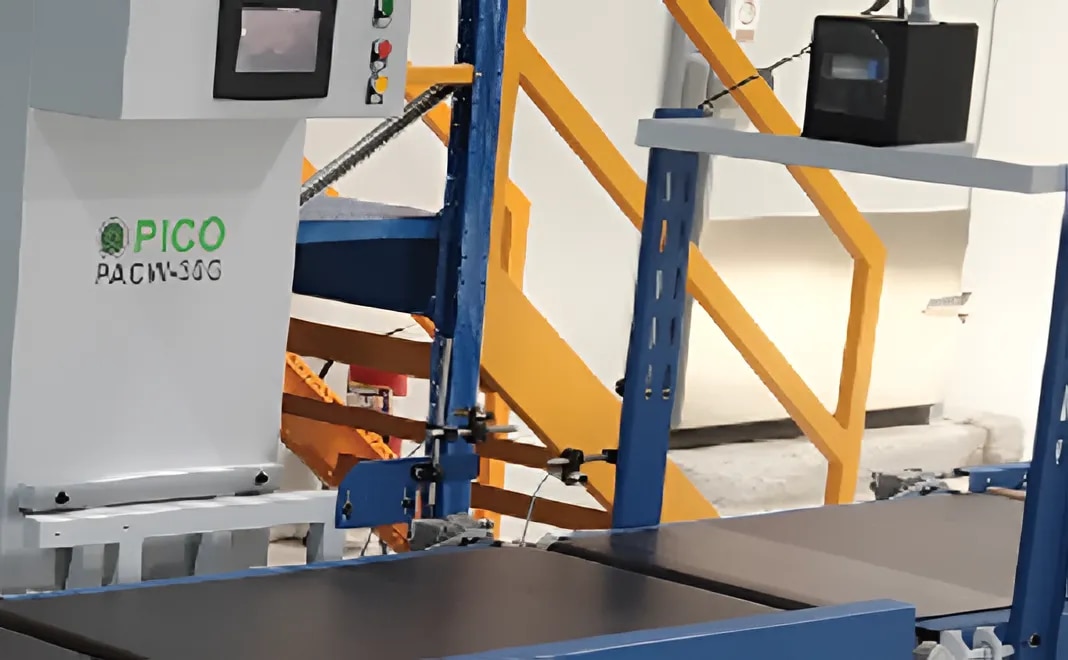

Label Printer Integration

Contact Us

Phone Number

08048068921

Please keep 0 before dialling the number.

Email Address sales@picoautomation.in

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address No:20, Prime Estates, Sf No:34, 1 & 35/1, Athipalayam Rd, Periyanaickenpalayam, Coimbatore, Tamil Nadu 641020

Coimbatore, India, 641020

Description

An integrated labeling system relies on real-time data sharing between the conveyor, an upstream inspection machine (like a checkweigher), and the printer: Data Capture: As a product moves down the line, it passes through a checkpoint. For instance, a checkweigher captures its exact weight, or a vision system verifies its barcode. Instant Print Generation: The checkweigher or central PLC instantly transmits this dynamic data to the integrated label printer. The printer generates and prints a unique barcode, weight reading, or price snippet onto a thermal label sheet. Automated Application: As the product continues moving down the conveyor, a mechanical applicator firmly presses or blows the freshly printed adhesive label onto the designated spot (top, side, or corner) of the moving package. Key Technical Advantages Zero-Error Batching: By marrying a checkweigher to a label printer, the system ensures the label printed on a box matches the exact contents inside. If a box is short an item, the system can flag it rather than printing a false label. Variable Data Printing: It can change the text from package to package in milliseconds—such as updating sequential serial numbers, real-time timestamps, or fluctuating weight calculations. Seamless Line Speed Synchronization: Built-in rotary encoders monitor the speed of the modular plastic or fabric conveyor belt. This ensures the labeling arm fires at the exact microsecond required, placing the label perfectly centered every time. Heavy-Duty Industrial Build: Designed for harsh packing environments, these integrations feature rugged mounting brackets and dust-resistant housings to protect delicate printheads from the debris of a busy factory floor. Primary Applications Logistics & E-Commerce: Automatically printing and applying unique shipping labels with destination routing barcodes onto outbound boxes. Food Packaging (Catch-Weighing): Weighing raw meat or cheese trays and instantly printing a “Price per kg” and “Total Price” label tailored specifically to that exact cut. Pharmaceutical Compliance: Applying serialized tracking labels to shipping cases to comply with global pharmaceutical anti-counterfeiting laws.

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image
Checkweighers

Checkweighers PACW 01G

This is a specially designed High speed Checkweigher to handle Small products in form of Cans, Containers, Cartons, Sachets & etc., Model > (PACW 01G) Weighing Range > (30-200 Grams) Resolution > (0.1 Grams) Product Output > (Up to 120 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232/RS 485 Optional) Product Size > (Dia (L) 30~100 x H (W) 10~200 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)

6814772a5d263414004dd4a4 Card 2

product image
Checkweighers

Checkweighers PACW 2G

This Checkweigher is designed to handle Medium size products in form of Mono Cartons, Pouches, Yarn cheese, Coir tablets & etc., Model > (PACW 2G) Weighing Range >(0.5-1.99 Kgs) Resolution > (2 Gram) Product Output > (60 to 80 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232 / RS 485 Optional) Product Size > (L 100~250 x W 100~250 x H 50~200 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)

6814772a5d263414004dd4a4 Card 2

product image
Checkweighers

Checkweighers PACW 10G

This Checkweigher is designed to handle Large size products in form of Small Cartons, Bags, Containers & etc., Model > (PACW 10G) Weighing Range > (1-10 Kgs) Resolution > (10 Grams) Product Output > (Up to 40 Parts Per Minute) Controller > (Micro Controller Based) Operation Panel > (7" HMI Display) Memory Capacity > (Upto 20000 Data) Communication > (RS 232 / RS 485 Optional) Product Size > (L 100~300 x W 100~280 x H 50~250 mm) Power Requirements > (1 Phase, 220V, 50 Hz) Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air) MOC Options > (Mild Steel / Stainless Steel) Ambient Temp Range > (23° to 40°C for MS Construction 0° to 40°C for SS Construction)
