Description

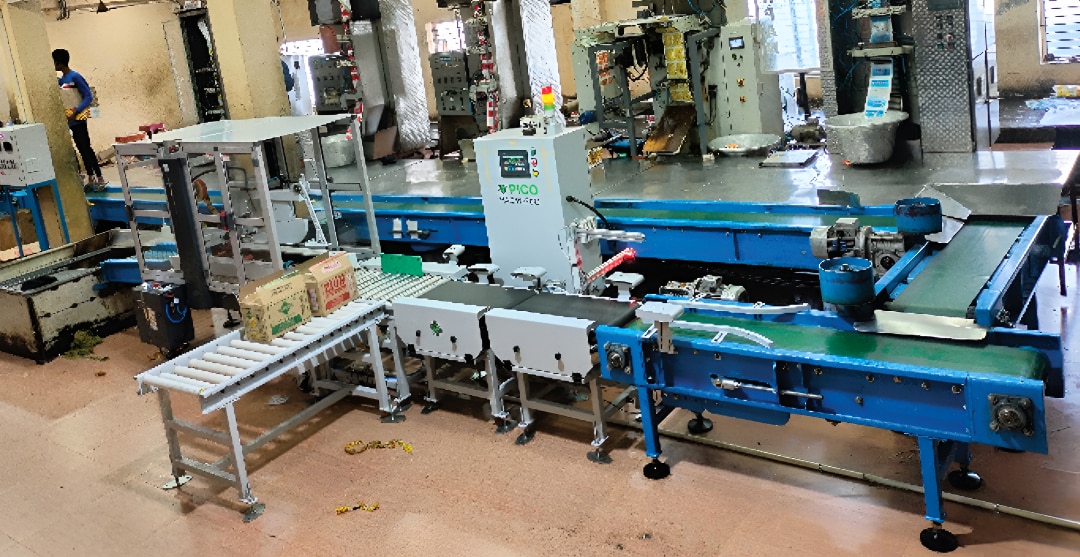

A fully automated packaging line is modular, meaning a product passes through several dedicated automated zones. These stages are generally divided into three categories: 1. Primary Packaging (Direct Product Contact) This is the initial layer of packaging that directly touches the product. Form-Fill-Seal (FFS) Machines: These machines take a roll of flat plastic film, shape it into a pouch or bag, fill it with a precise weight of product (like potato chips or liquid detergent), and heat-seal it closed. Capping and Bottling Lines: Automations that feed empty bottles, fill them with exact liquid volumes using flow-meter sensors, and mechanically torque caps onto them at high speeds. 2. Secondary Packaging (Grouping Products) Once the individual product is securely wrapped, secondary automation groups multiple items together for retail display or protection. Case Erectors: Robotic arms pull flat-packed cardboard boxes from a magazine, unfold them, square them up, and tape or glue the bottom flaps automatically. Pick-and-Place Robots: High-speed delta or articulated robotic arms use vacuum suction or mechanical grippers to lift products off a moving conveyor belt and neatly pack them into the erected cases. Case Sealers: Once the box is full, this machine folds down the top flaps and applies tape or hot-melt glue to secure the carton. 3. Tertiary Packaging (Bulk Transport Prep) This final stage prepares grouped products for bulk shipping and warehouse distribution. Automated Palletizers: Robotic arms or high-level mechanical stackers receive sealed boxes from the conveyor line and stack them onto a shipping pallet according to a mathematically optimized grid pattern. Pallet Stretch-Wrappers: The loaded pallet is moved onto a turntable or wrapped by a rotating mechanical arm that tightly binds the entire load in stretch film, ensuring it won't topple over during transit. Key Technologies Driving Modern Packaging Machine Vision Systems: High-speed cameras inspect packages in real-time. If a label is crooked, a barcode is unreadable, or a bottle is underfilled, the vision system flags it and a pneumatic pusher rejects it from the line without stopping production. Smart Sensors & IO-Link: Photo-eyes and proximity sensors track the flow of boxes, preventing jams and ensuring that a machine only fires (e.g., dispenses glue) when a box is perfectly positioned. Programmable Logic Controllers (PLCs): The centralized “brain” of the packaging line that coordinates speeds between the conveyor belts, filling machines, and robotic arms to maintain a synchronized workflow. Major Advantages of Packaging Automation 1. Unmatched Speed and Scalability While a skilled human worker might manually pack 5 to 10 boxes a minute, a modest automated case packer can easily process 30 to 60 cases per minute, running continuously 24/7 without fatigue. 2. Material Waste Reduction Human operators occasionally misapply tape, spill product during filling, or cut film incorrectly. Automated systems use precise servo motors to dispense the exact amount of product, tape, and film required down to the millimeter, significantly lowering material costs. 3. Elevated Hygiene and Safety In industries like pharmaceuticals and food processing, human contact introduces contamination risks. Automating the primary packaging stage ensures a sterile environment. Furthermore, it removes workers from repetitive motion tasks (like box folding) that frequently cause workplace strain injuries.
