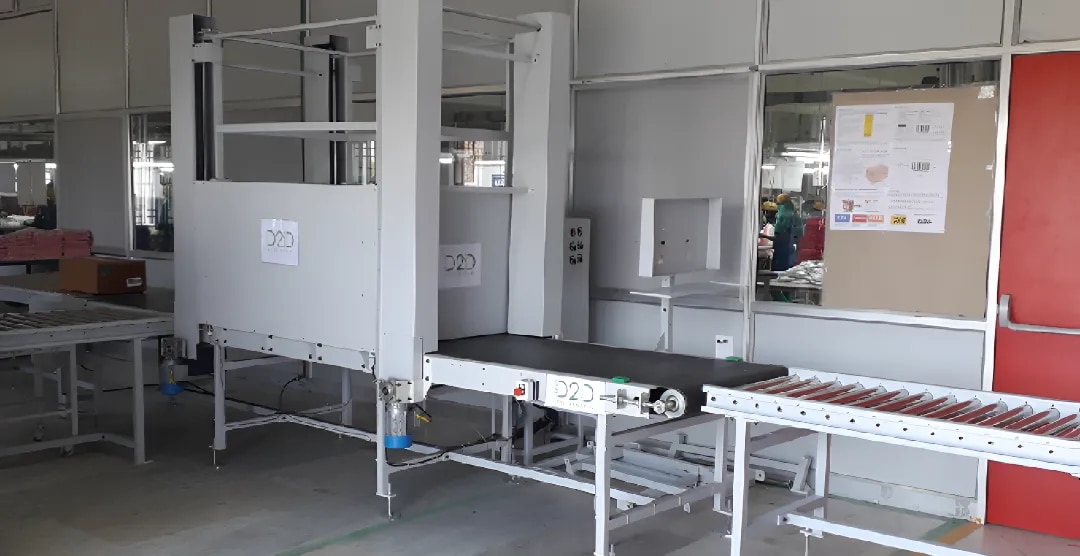

Conveyors With RFID Chambers

As items move along the conveyor, they enter a fully enclosed or shielded tunnel structure. Inside this chamber, fixed RFID antennas are strategically positioned at multiple angles (top, bottom, and sides) to ensure that no matter how an item or pallet is oriented, its tag will be read.

The system works through a strict three-step cycle:

Entry & Isolation: A package passes a photo-eye sensor at the entrance, which triggers the RFID readers to turn on and marks the start of a specific tracking window.

Dense Scanning: Inside the shielded chamber, the readers fire radio waves. Because the waves cannot escape, they bounce around inside, creating an incredibly high-density read zone that captures all tags instantly.

Exit & Validation: The package exits the chamber, a second sensor turns the readers off, and the system transmits the exact count and data to the Warehouse Management System (WMS) or ERP.

Key Components

RF Shielding Structure: The walls of the chamber are typically made of aluminum, stainless steel, or composite materials lined with specialized RF-absorbent foam. This blocks external interference and prevents the radio waves from “bleeding” out into the warehouse.

Multi-Angle Antennas: Multiple antennas are tuned to specific frequencies (usually UHF) to eliminate blind spots caused by product density or orientation.

Position Sensors (Photo-Eyes): Industrial sensors at the entry and exit points tell the system exactly when a package is inside, ensuring the readers only fire when necessary.

RF Curtains: Strips of heavy, metal-infused or carbon-loaded fabric hang at the entrance and exit. They act like physical doors that block stray radio waves while allowing packages to pass right through.

The Benefits:

1. Elimination of “Stray Reads”

In a busy fulfillment center, a standard RFID reader might accidentally scan a tag on a forklift driving 15 feet away. The shielded walls of a chamber ensure the reader only sees the items currently on that specific section of the conveyor belt.

2. Bulk Scanning at High Speeds

Instead of a worker scanning bar codes one by one, an RFID chamber can read an entire box filled with 50 uniquely tagged apparel items in milliseconds while moving at speeds exceeding 100 meters per minute.

3. Overcoming Physical Obstacles

Radio waves struggle to pass through metals and are absorbed by liquids. By trapping and reflecting the signal inside a highly controlled chamber, the system maximizes its chances of reading tags that are tightly packed or placed near difficult materials.
