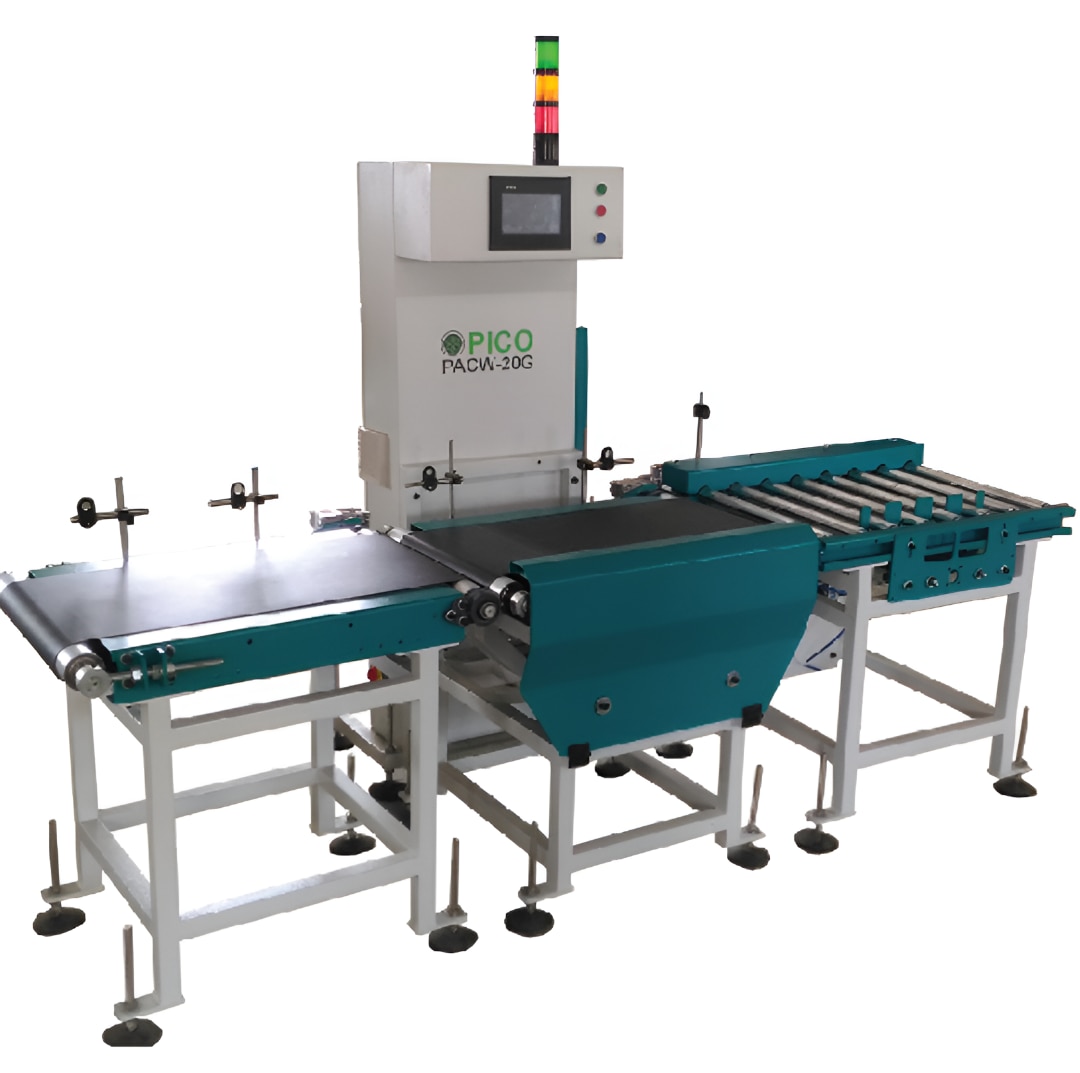

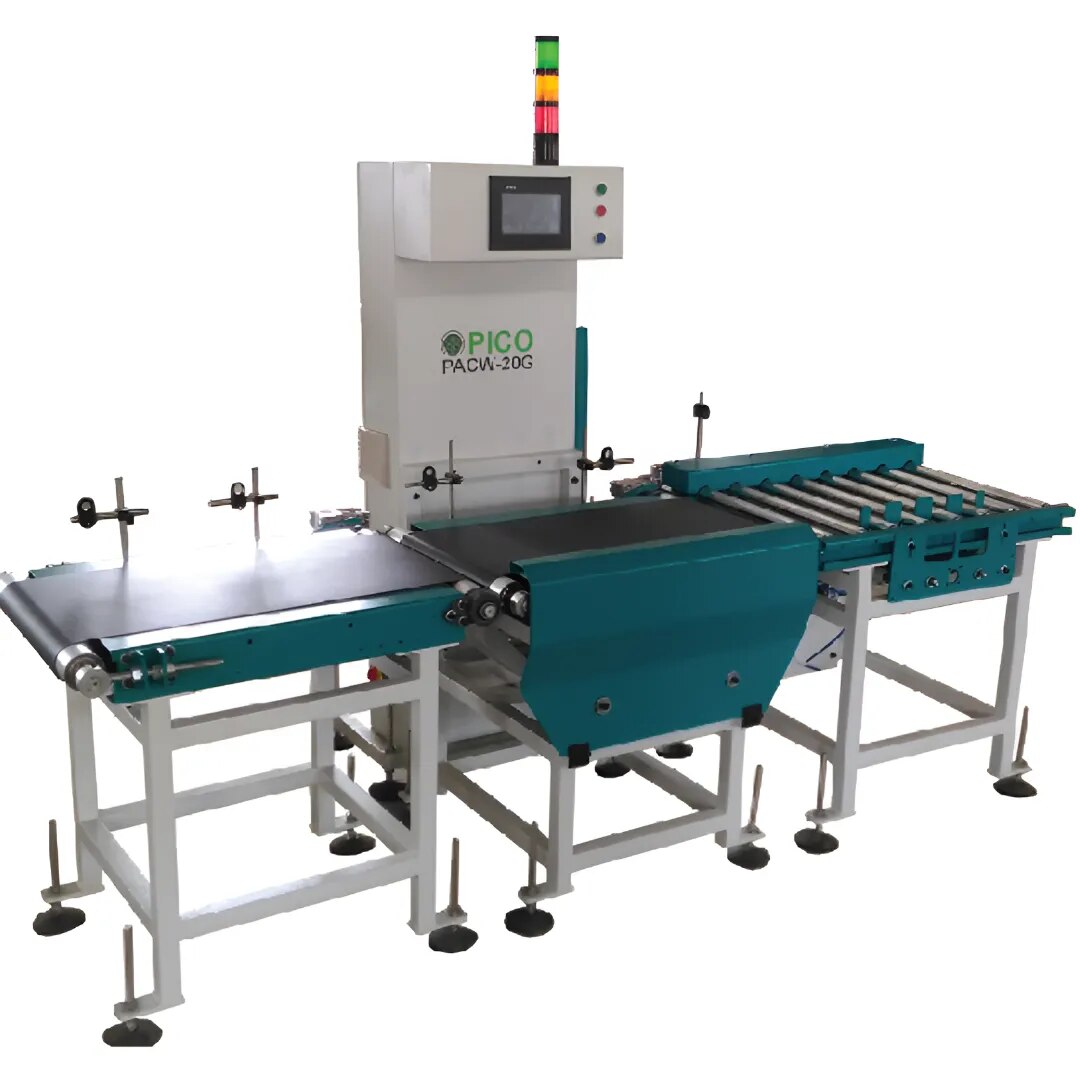

Checkweighers PACW15/20G

This Checkweigher is designed to handle Large size products in form of Master Cartons, Bags, Crates & etc.,

Model > (PACW 15/20G)

Weighing Range > (1-15 Kgs)

Resolution > (15/20 Grams)

Product Output > (Up to 20 Parts Per Minute)

Controller > (Micro Controller Based)

Operation Panel > (7" HMI Display)

Memory Capacity > (Upto 20000 Data)

Communication > (RS 232 / RS 485 Optional)

Product Size > (L 100~400 x W 100~350 x H 50~300 mm)

Power Requirements > (1 Phase, 220V, 50 Hz)

Air Requirements > (0.4 mpa, 20 R/min (Use Dry Air)

MOC Options > (Mild Steel / Stainless Steel)

Ambient Temp Range > (23° to 40°C for MS Construction

0° to 40°C for SS Construction)
